概述
Q43系列鍔魚式剪切機適用于金屬回收公司、廢鋼廠、冶煉鑄造企業對各種形狀的型鋼及各種金屬結構進行冷態剪切,以加要合格爐料。
特點:
(1)采用液壓驅動,操作方便,維修簡單。
(2)工作刀口長度:400mm,600mm700mm800mm1000mm1200mm1500mm,剪切力從63噸至6000噸共10個等級。700mm以上刀口的剪切機,特別適用于剪切報廢汽車。
(3)安裝無須底腳螺絲,無電源的地方可用柴油機作動力。

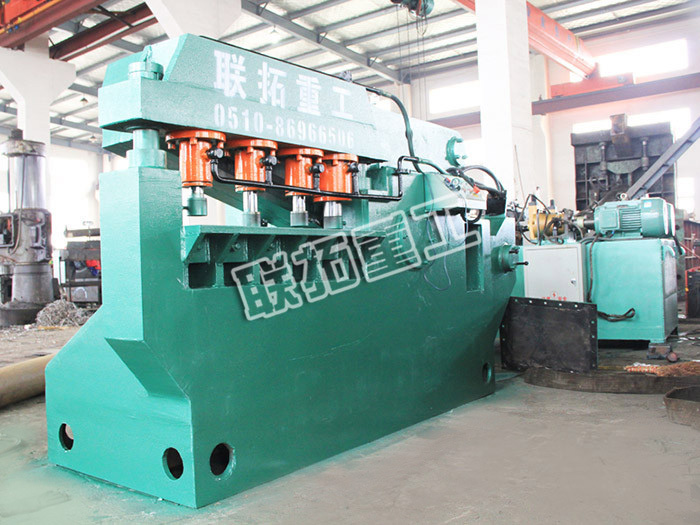

Q43 series hydraulic alligator shear
Q43 series alligator shears applicable to mental recycling companies ,scarp steel plant,smelting foundry enterprises of various shapes of steel and mental structures cold cut ,to add to qualified charging .
Features:
Hydraulic drive ,convenient operation ,simple maintenance.
Male for blade length:400mm,600mm,700mm,800mm,1000mm,1200mm,1500mm,shear force from 63-600 tons,a total of 10 levels.700mm above the blade shearing machine,especially for cutting scrap cars.
No footing bolts needed to install,no power is available where diesel powered.
技術參數Technical Specifications
型號 Model | 較大剪切力 Max shear | 較大壓料力 | 較大張口 Max blade | 刀口長度 Blade length | 每分鐘可剪次數 Shearing frequency | 主要被剪切材料尺寸 Material size | 機器總功率 Power | 操作方式 Operation |
Q43-400 | 40 | / | 200 | 200 | 8-16 | 20*20Φ25 | 5.5 | 人工送料, 手動或自動 Manual feeding, |
Q43-630 | 63 | 12 | 180 | 400 | 8-20 | 30*30 Φ35 | 7.5 | |
Q43-1000 | 100 | 16 | 180 | 600 | 9-20 | 40*40 Φ45 | 11 | |
Q43-1200 | 120 | 20 | 280 | 600 | 8-20 | 45*45Φ500 | 15 | |
Q43-1600 | 160 | 25 | 320 | 700 | 9-20 | 55*55 Φ63 | 18.5 | |
Q43-2000 | 200 | 25 | 380 | 800 | 12-20 | 65*65 Φ75 | 22 | |
Q43-2500 | 250 | 26 | 480 | 1000 | 12-20 | 70*70 Φ80 | 30 | |
Q43-3150 | 315 | 42 | 520 | 1200 | 12-20 | 80*80 Φ90 | 37 | |
Q43-4000 | 400 | 42 | 520 | 1200 | 12-20 | 90*90 Φ100 | 44 | |
Q43-5000 | 500 | 50 | 650 | 1500 | 12-20 | 100*100 Φ110 | 60 | |
Q43-6000 | 600 | 50 | 650 | 1500 | 12-20 | 105*105Φ120 |
|
|
